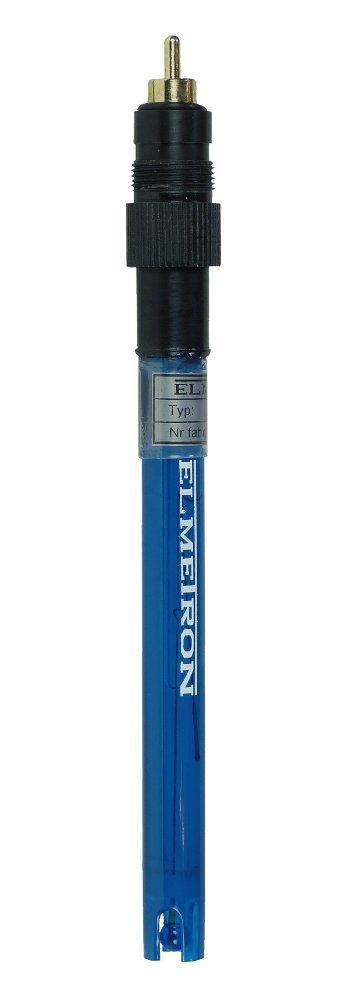

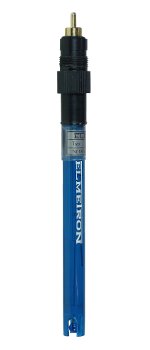

COMBINATION pH ELECTRODE EPP-1B
Combination pH electrode type: EPP-1B is used for continuous pH measurements.
The electrode should be used in clear water. This electrode can’t be used for
measurements in waste water or other liquids with deposits and corrosive chemical
compounds.
The thread and connector placed on the upper side enables to screw the cell into the
immersible head.
The electrode is characterised by low impedance, short stabilisation time, good linearity
at the end points of the measuring range.
EPP-1B has a round glass membrane.
The gel electrolyte is not refillable.
Plastic body of the electrode lowers the risk of breakage.
This type of electrode is offered for our heads: GXZ-1t; GXZ-2t; GXZ-3t
and for GXZ-3tk multifunction head which cooperates with portable
multifunction meters
Technical Data
| Range | 0 ÷ 14 pH |
|---|---|
| Working temperature range | 0 ÷ 50 °C |
| Zero point | 7.0 ±0.3 pH |
| Diaphragma type / membrane | ceramic / glass, round |
| Electrolyte | gel, 3M KCl |
| Impedance | < 120 MΩ (25 °C ) |
| Diameter | 12.0 mm ±0.5 mm |
| Length | 140 mm ±5 mm |
| Minimal immersion level | 30 mm |
| Body material | polycarbonate |
| Connector | chinch with M 16 thread |
