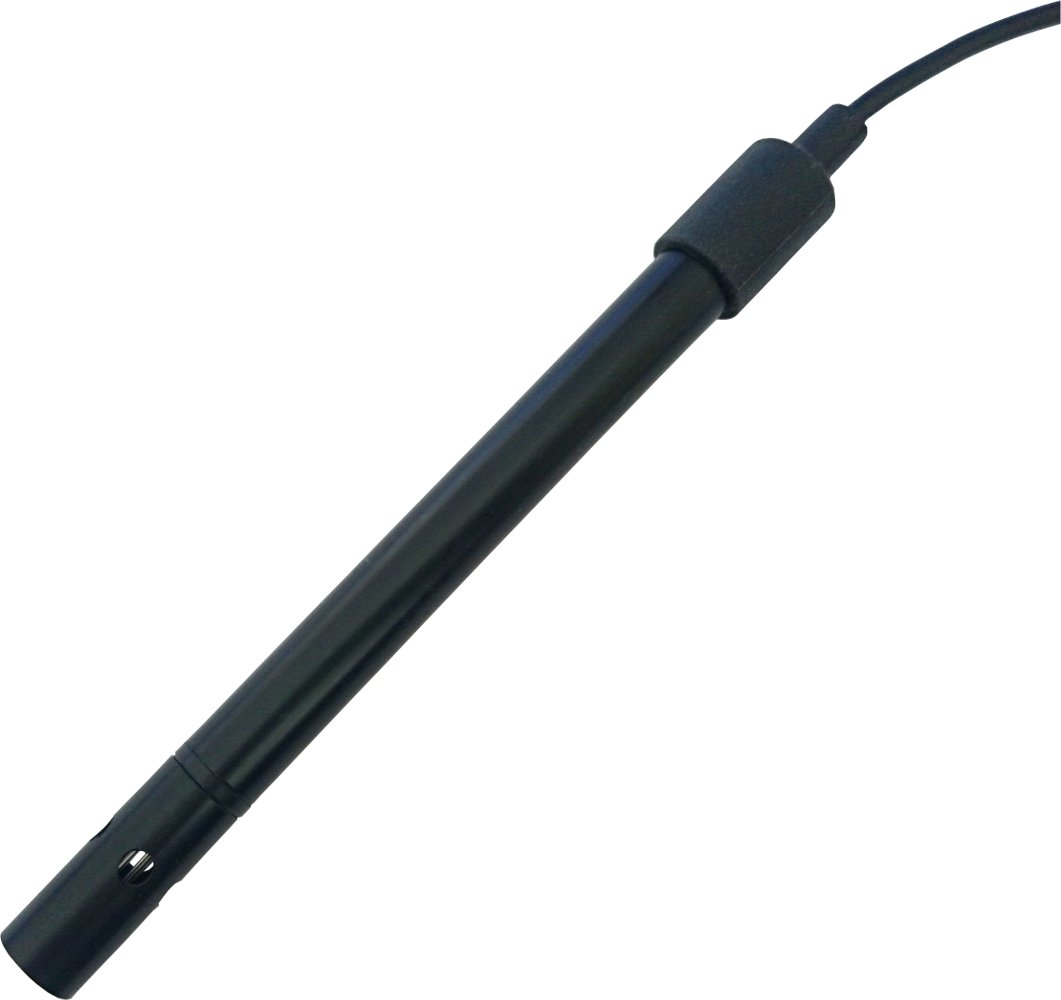

CONDUCTIVITY CELLS ECF-1, ECF-1t


ECF-1 and ECF-1t are cells for immersible or in flow measurements. Wide measuring range (0 ÷ 400 mS/cm) enables using it in many applications. The cells are recommended for conductivity measurements in sewage, liquids with sediments, containing grease, oil, acids or alkalis, natural water, tap water etc.. This cells can also be used for measurements in water paints.

ECF-1t is equipped with a built-in temperature sensor.

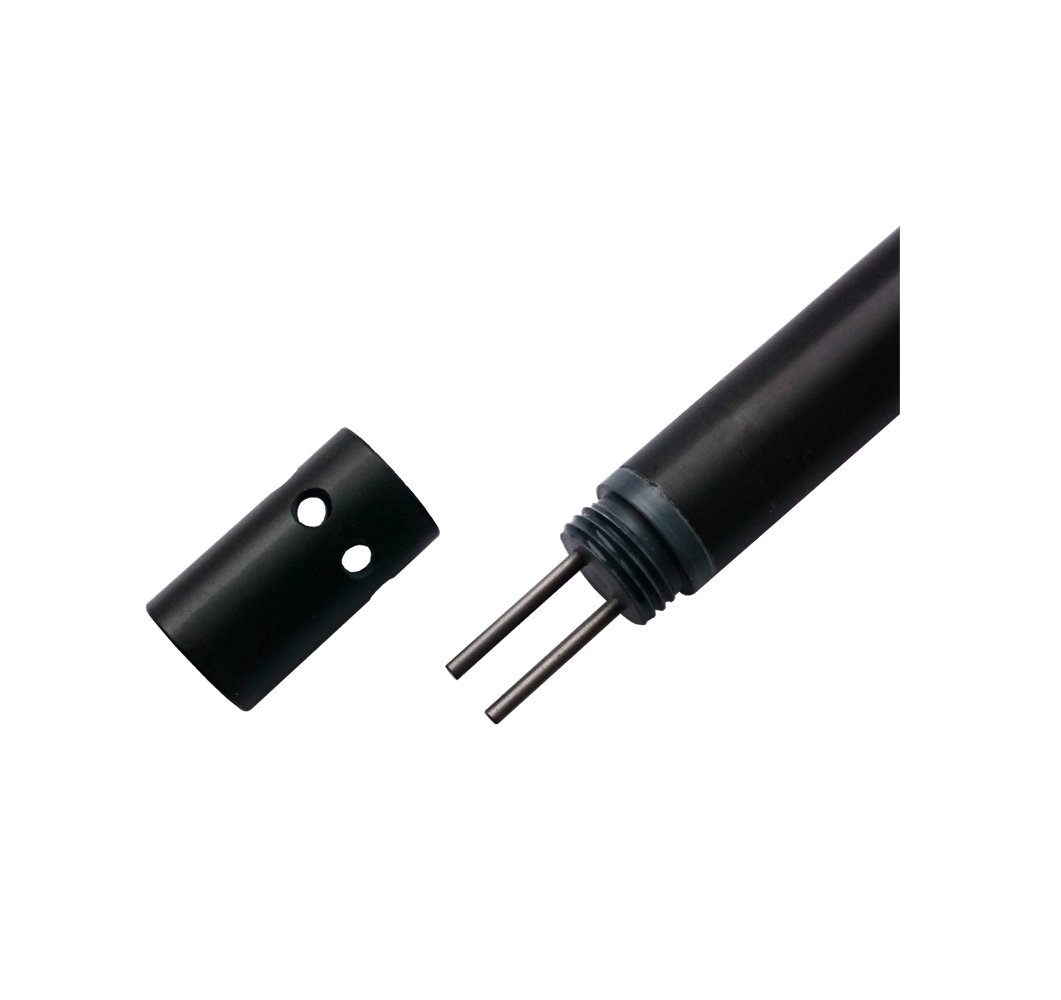

Metal electrodes are easy to clean and resistant to mechanical damage. The housing is equipped with electrode cover, which may be screwed off easily to clean the electrodes.

In case of measurements of ultra pure water the cell should be used only for this purpose, not for any other measurements. The measurements should be done in flow with use of a special flow vessel. The measurement without contact with air is more accurate, as gases contained in air may penetrate into the liquid and significantly change the reading. As additional equipment, we offer a flow-through vessel put on the bottom of the electrode. The water is flowing directly form a distiller or a pipeline through the valve and runs through the hose to the inlet at the bottom part of the vessel. The liquid outflowing through the vessel is directed to the sewage system or a container provided by the user.

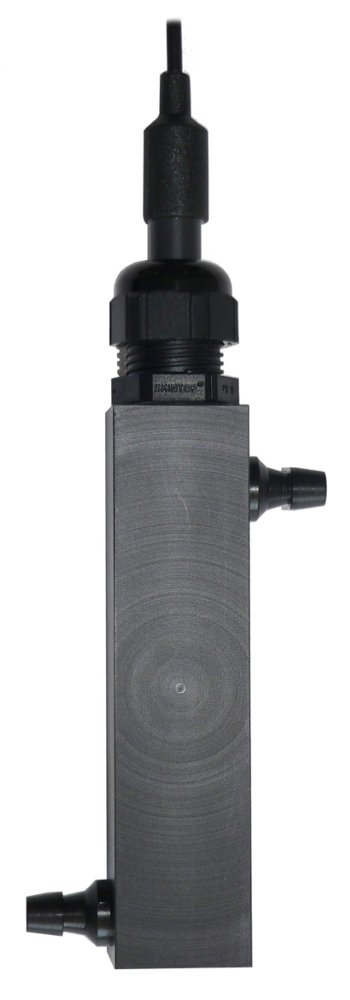

The cell may be mounted in the GPX-01M flow head which is made of plastic.

The main advantages of the cells are: accuracy, easy cleaning, resistivity of the electrodes to corrosion and affordable price.

The cells may cooperate with all conductivity meters made by Elmetron after the 2002 year.

For the liquids with conductivity belowj 10 µS/cm we recommend using an EC-201 cell with the constant K = 0.1cm-1 placed in a folow vessel. European norm EN 27888 recommends such way of measurement.
For measurements of liquids with conductivity higher than 400 mS/cm we offer the EC-210 cell with constant K = 10cm-1.



TECHNICAL DATA
Range 0 ÷ 400 mS/cm
K constant 0.45 ±0.05cm-1
Temperature range 0 ÷ 60 °C
Minimal immersion level 30 mm
Diameter 12.0 mm ±0.5 mm
Length 120 mm ±5 mm
Cable length about 1 m
Body material PVC
Connector BNC-50
Temperature sensor (ECF-1t) Pt-1000B
