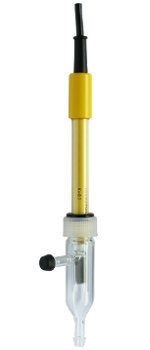

CONDUCTIVITY CELL EC-201t

Zoom

EC-201t conductivity cell is recommended for conductivity or salinity measurements in ultra pure water. The cell is equipped with a built-in temperature sensor (Pt-1000B resistor).
Low K constant enables measurements in ultra pure and pure water like demineralised or deionised water.
The electrodes are made of large surface flat platinum elements. They are not covered with the platinum black.
This solution speeds up the cell reaction time and results in more stabile readings but may be used only for measurements of low conductivity samples.
The cell may be applied for measurements in imersion or in flow – the second method is especially recommended for measurements in water of very low conductivity.

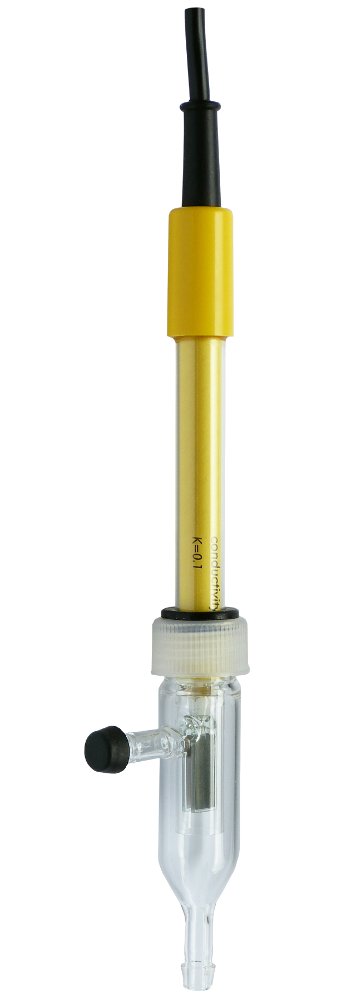

The measurement without contact with air is more accurate, as gases contained in air may get into the liquid and significantly change the reading. As an additional equipment, we offer a glass flow vessel put on the lower part of the cell. The water is flowing directly form a distiller or a pipeline through the valve and runs through the hose to the inlet at the bottom part of the vessel. The liquid outflowing through the vessel is directed to the sewage system or a container provided by the user.
The cell may also be mounted in the GPX-01 flow head which is made of plastic.
